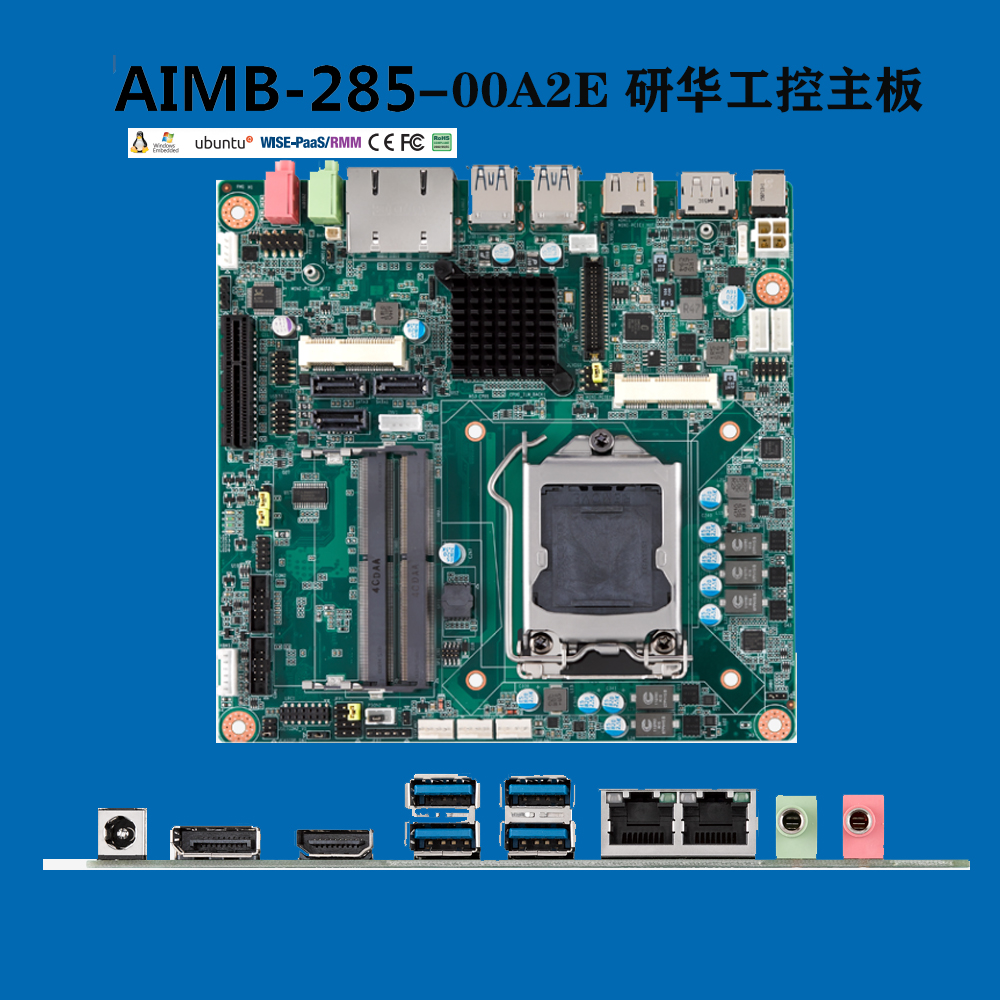

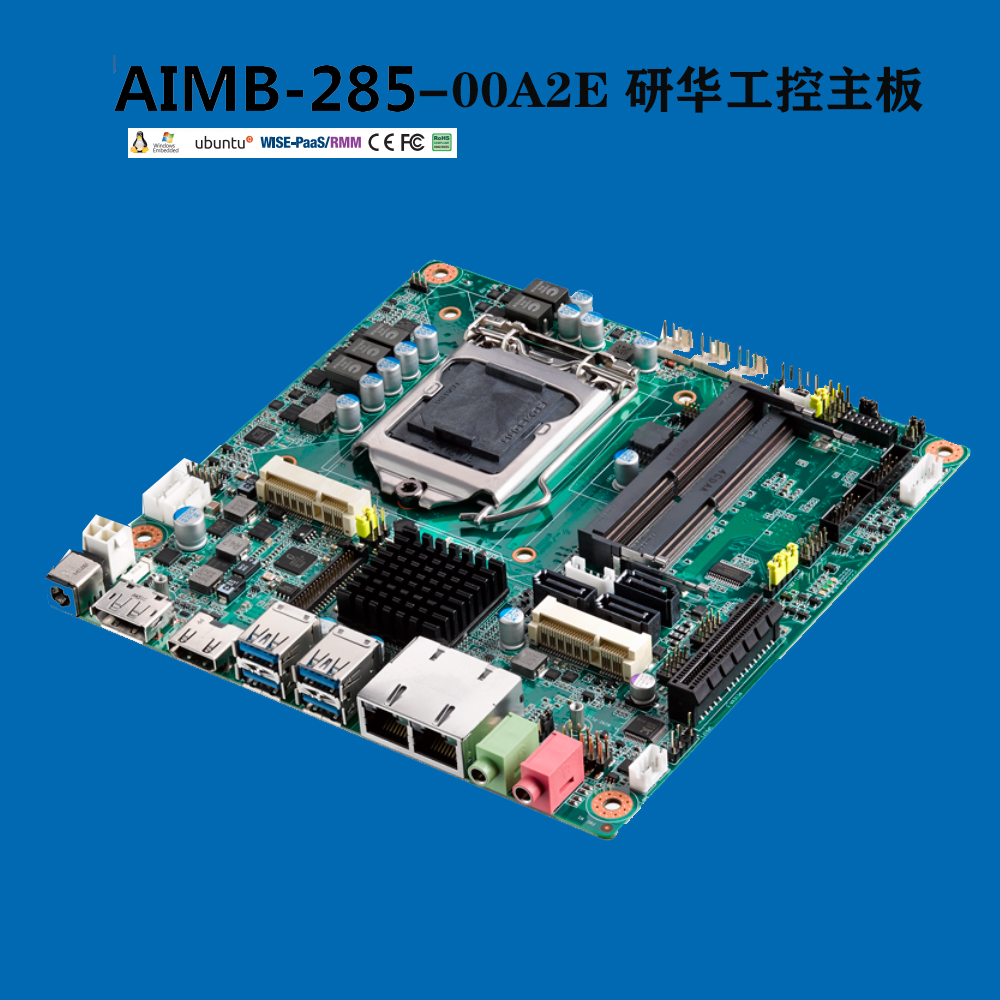

AIMB-285

適配Intel? 第6/7代 Core? i 處理器，搭載H110芯片組。超薄緊湊，是理想的高性價比解決方案。

• 支持Intel? 第6/7代 Core? i 處理器和H110芯片組
• 2 x 260-pin SO-DIMM，最高可達(dá)16GB DDR4 2133MHz SDRAM
• 支持雙屏顯示：DP/HDMI/VGA/LVDS(可選)
• 支持1 x PCIe x16 Gen3，1 x F/S miniPCIe，1 x M.2（NGFF），6 x USB 3.0，3 x SATA III
• 12V電壓輸入
• 超薄Mini-ITX
• 支持TPM 1.2/2.0(可選)
• 支持DeviceOn和嵌入式軟件APIs

• AIMB-285G2-00A2E

  Processor

  CPU

  Intel? Core? i7/i5/i3/Pentium

  CPU TDP

  65W / 35W

  Frequency

  2.3G~3.4GHz

  Core Number

  4 / 2

  L3 Cache

  2 ~ 8MB

  BIOS

  AMI UEFI 128 Mbit

  Chipset

  Intel H110

  Memory

  Technology

  DDR4 SO-DIMM up to 2400MHz

  Max. Capacity

  32GB (up to 16GB per SO-DIMM)

  Socket

  2 x 260 Pin DDR4 SO-DIMM

  Display

  Controller

  CPU Integrated

  Graphic Engine

  Intel HD Graphic

  DDI (HDMI/DVI/DisplayPort)

  DP/HDMI

  LVDS

  48-bit LVDS up to 1920 x 1200 at 60Hz

  Multiple Display

  Dual

  Video Interface

  DP/HDMI/VGA/ support dual display

  Expansion

  PCI Express x 4

  1

  Slot Type

  1 x Full-size (Supports mSATA) <br>1 x Half-size

  Slots

  PCIe x4, Mini-PCIe

  Ethernet

  Controller

  LAN1/ LAN2: Realtek RTL8111H

  Speed

  10/ 100/ 1000 Mbps

  Connector

  RJ45 x 2

  Audio

  Audio Interface

  HD Audio

  CODEC

  Realtek ALC888S

  Connector

  2 (Line out, Mic In)

  Watchdog Timer

  WatchDog Timer

  Yes

  I/O

  COM Port

  2 ( 1 x RS232, 1 x RS232/ 422/ 485)

  GPIO

  8-bit

  USB2.0

  4

  TPM

  Optional

  USB3.0

  4

  SATA

  Ports

  3

  Power

  Connector

  DC Jack

  Power Type

  Single 12V DC power input

  Environment

  Operational Temperature

  0 ~ 60° C (32 ~ 140° F)

  Non-Operational Temperature

  -40~ 85° C

  Vibration Resistance

  3.5 Grms (non OP)

  Physical

  Dimension (mm)

  170x 170 mm (without heatsink)

  Weight

  1.04 kg (1.72 lb), weight of total package

  Construction

  with CPU cooler design

  Operating System

  Microsoft Windows

  Yes

  Linux

  Yes

  SUSIAccess

  Yes

  Certification

  EMC

  CE, FCC
