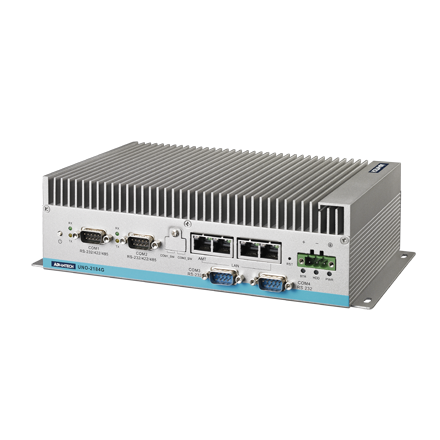

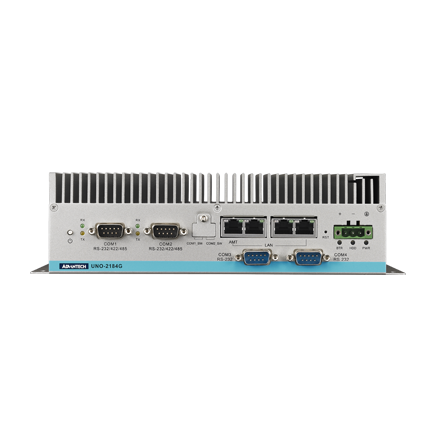

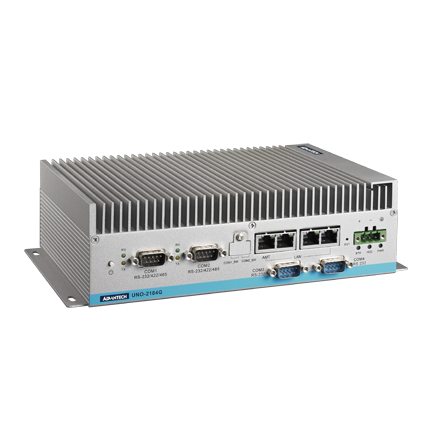

UNO-2184G-D45E
內建 Intel I7-2655LE(2.2G),8GB DDR3內存, 2*RS-232/422/485,2*RS232;4*Giga LAN, 1*內部CFast, 6*外部USB2.0, DP/HDMI/ DVI-I, Audio out,
2*Mini-PCIe with 1*SIM card support, PCI-104 無風扇嵌入式控制器
購買電話：13581789724 010-82827893/39-8004 詳情請登陸：www.getck.com.cn
購買電話：13581789724 010-82827893/39-8004 詳情請登陸：www.getck.com.cn
購買電話：13581789724 010-82827893/39-8004 詳情請登陸：www.getck.com.cn
英特爾Core i7自動化電腦，帶4個千兆以太網接口，2個小型PCIe，DVI/DP/HDMI高清接口
主板英特爾賽揚847/807UE/酷睿i7-2655LE,1.1GHz/1.0GHz/2.2GHz 處理器
2個RS-232和2個RS-232/422/485自動數據流控制端口
2個10/100/1000Base-T以太網

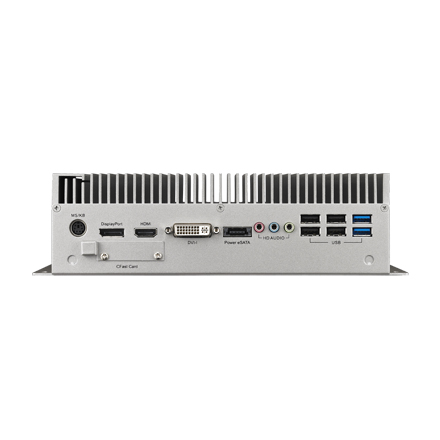

DVI-I, DP, HDMI支持2個獨立顯示器
音頻隨麥克風輸入，輸入線，輸出線
6個USB 2.0端口
支持2個PCI-104插件卡和子板擴展
Windows? WES 2009, WES 7，即用解決方案
可外接入Cfast插槽
內建系統狀態LED燈指示
支持局域網功能喚醒和啟動
支持Power eSATA
底盤和電力接地隔離
IP40 入口保護
UNO-2184G
is an high-performance Intel 2nd generation Core i7-2655LE/847/807UE grade
controllers that support PCI-104 with daughterboard expansion, 3 x display, 6 x
USB, and 2 x Mini PCIe socket. They also feature WLAN, 3G expansion and
compatibility with Windows 7. The 4 x Gigabit LANs on the UNO-2184G support
teaming function with fault tolerance, link aggregation, and load balance
features. The UNO-2184G is an high end computing platforms designed to support
applications with tremendous data volume and 3D content.
規格
UNO-2184G-D45E
取得報價
UNO-2184G-D64E
取得報價
General
Power Consumption
Mounting
Certifications
Weight
OS Support
Power Requirement
System Design
Remote Management
Enclosure Housing
Dimensions
40 W (typical)
40 W (typical)
DIN-rail, Wallmount, VESA
DIN-rail, Wallmount, VESA
CE, UL, CCC, FCC, C-Tick, BSMI
CE, UL, CCC, FCC, C-Tick, BSMI
3.0 kg
3.0 kg
Windows XP/7, WES7, WES-2009, Linux
Windows XP/7, WES7, WES-2009, Linux
9 ~ 36 VDC (e.g +24V @ 3A) (Min. 72W),
AT/ATX
9 ~ 36 VDC (e.g +24V @ 3A) (Min. 72W),
AT/ATX
Fanless with no internal cabling (except
COM3/COM4)
Fanless with no internal cabling (except
COM3/COM4)
Built-in Advantech DiagAnywhere agent on
WES2009 / WES7
Built-in Advantech DiagAnywhere agent on
WES2009 / WES7
Aluminum
Aluminum
255 x 152 x 69 mm(10" x 6.0" x
2.7")
255 x 152 x 69 mm (10" x 6.0" x
2.7")
System Hardware
CPU
Memory
Storage
Keyboard/Mouse Ports
Audio
Display
Indicators
Mini PCIe Expansion
Intel Core i7-2655LE 2.2 GHz
Intel Core i7-3555LE 2.5GHz
8 GB DDR3 SDRAM built-in
4 GB DDR3 SDRAM built-in
CF: 1 x CFast slot, HDD: One built-in
2.5" SATA HDD bracket(Optional 2 x HDD Bracket Kit)
CF: 1 x CFast slot, HDD: One built-in
2.5" SATA HDD bracket(Optional 2 x HDD Bracket Kit)
1 x PS/2
1 x PS/2
Mic in, Line in, Line out
Mic in, Line in, Line out
1 x DVI-I, 1 x HDMI, 1 x DP (2 x
independent displays)
1 x DVI-I, 1 x HDMI, 1 x DP (2 x
independent displays)
LEDs for Power, battery, LAN (Active,
Status) and Serial (Tx, Rx)
LEDs for Power, battery, LAN (Active,
Status) and Serial (Tx, Rx)
2 x Mini PCIe slots with 1 x SIM card
2 x Mini PCIe slots with 1 x SIM card
I/O Interface
Serial Ports
LAN
USB
2 x RS-232, 2 x RS-232/422/485 with DB9
connectors Automatic RS-485 data flow control
2 x RS-232, 2 x RS-232/422/485 with DB9
connectors Automatic RS-485 data flow control
4 x 10/100/1000Base-T RJ-45 ports, Supports
AMT (UNO-2184G only), wake on LAN and built-in boot ROM in flash BIOS
4 x 10/100/1000Base-T RJ-45 ports, Supports
AMT (UNO-2184G only), wake on LAN and built-in boot ROM in flash BIOS
6 x USB (only UNO-2184G-D64E supports 2 x
USB3.0)
6 x USB (only UNO-2184G-D64E supports 2 x
USB3.0)
Environment
Temperature (Operating)
Temperature (Storage)
Humidity (Operating)
Vibration Protection
Shock Protection
-10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH. (with air flow)
-10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH. (with air flow)
-40 ~ 60°C (-40~140°F)
-40 ~ 60°C (-40~140°F)
95% @ 40°C (non-condensing)
95% @ 40°C (non-condensing)
IEC 60068-2-64 (Random 1 Oct./min,
1hr/axis.) HDD: 1 Grms @ 5 ~ 500 Hz
IEC 60068-2-64 (Random 1 Oct./min,
1hr/axis.) HDD: 1 Grms @ 5 ~ 500 Hz
IEC 60068-2-27, CompactFlash: 50 G @ wall
mount, half sine, 11 ms, HDD: 20 G @ wall mount, half sine, 11 ms
IEC 60068-2-27, CompactFlash: 50 G @ wall
mount, half sine, 11 ms, HDD: 20 G @ wall mount, half sine, 11 ms
Processor System
Watchdog Timer
Programmable 256 levels timer interval,
from 1 to 255 sec
Programmable 256 levels timer interval,
from 1 to 255 sec
