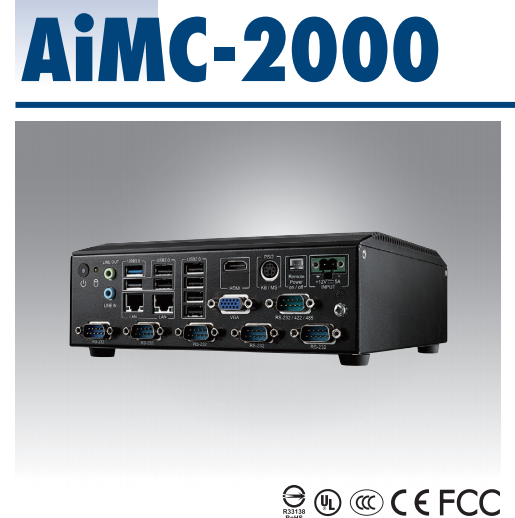

研華無風扇工控機AIMC-2000 J1900四核CPU6串口 |
|
日期:2020/7/17 20:10:59
|
- Front Access Fan-less Micro Computer, Intel? Celeron? Quad Core J1900/N2807 SoC with VGA/HDMI, 6 COMs, 8 USBs
Intel Baytrail平臺
- Intel Celeron 四核J1900/N2807 SoC
- -無風扇設計
- 緊湊型&豐富I/O配置
- -1個內置2.5"SATA HDD硬盤和1個mSATA存儲插槽
- -VGA,HAMI.2個Gbe LAN,7個USB 2.0,，1個USB 3.0,5個RS-232,1個RS-232/422/485
- -1個mini PCIe擴展插槽，支持全長模塊
- -音頻輸入，輸出支持6W攻放
- 節能
- -DC 12V電源輸入
規格
AIMC-2000J-HDA1E
Certification
EMC
Safety Certifications
CE, FCC, CCC
UL, CB, CCC, BSMI
Disk Drive Bay
2.5" Internal
1
Environment
Operating Shock
Operating-Temperature
Non-Operating Vibration
Non-Operational Temperature
Operating Vibration
10G, half sine wave, 11 ms duration
0 ~ 40°C (HDD) -20~60°C (mSATA)
2 G
-40~ 85° C and 60° C @ 95% RH Non-Condensing
1Grms (with HDD), 3Grms (with SSD)
Miscellaneous
Control
LED Indicators
Power on/off switch
HDD
Physical Characteristics
Dimensions (W x H x D)
Weight
200 x 69 x200 mm
2.5 kg
Display
Controller
Intel HD graphics Integrated
Ethernet
Connector
Controller
Speed
2 x RJ45
LAN1: Realtek RTL8111E, LAN2: Realtek
RTL8111E
10/100/1000 Mbps
Expansion Interface
Mini PCIe
1 x internal Mini PCIe (Full-Size)
Front I/O Interface
Audio
COM
Display
LAN
PS/2
USB2.0
USB3.0
Line-in, Line-out
6
1 VGA + 1 HDMI
2
1
7
1
Memory
Capacity
Socket
Technology
Up to 8 GB
2 x 204-pin SODIMM
Dual Channel DDR3 1066/1333 MHz (Non ECC)
Processor System
BIOS
Frequency
CPU
Core Number
AMI SPI 64 Mbit
2.0 GHz
Intel? Celeron? J1900
4
Form Factor
Form Factor
Compact
|
|
