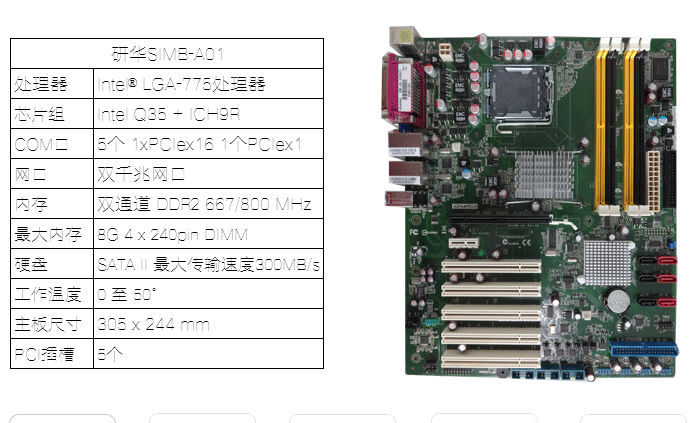

SIMB-A01

購買電話：13581789724 010-82827893/39-8004   詳情請登陸：www.getck.com.cn

Specifications

		SIMB-A01-6G200A1E
Processor System	CPU	Intel Core 2 Quad
	L2 Cache	6 MB
	Chipset	Intel Q45 + ICH10DO
	BIOS	Award 32 Mbit , SPI
	Front Side Bus	800/1066/1333 MHz
Expansion Slot	PCI	32-bit/33 MHz, 5 slots
	PCIe x16	1
	PCIe x1	1
Memory	Technology	Dual channel DDR2 667/800 MHz
	Max. Capacity	8 GB
	Socket	4 x 240-pin SODIMM
Graphics	Controller	Intel Graphics Media Accelerator
	VRAM	Intel DVMT 4.0 supports up to 284 MB Video Memory
	VGA	On board GMA 3100
	LVDS	Through ADD2 LVDS Card
	DVI	Through ADD2 DVI Card
	HDMI	Through ADD2 HDMI Card
Ethernet	Interface	10/100/1000 Mbps
	Controller	GbE LAN1: Realtek RTL8111C, GbE LAN2: Realtek RTL8111C
	Connector	2 x RJ-45
SATA	Max. Transfer Rate	300 MB/s
	Channel	6
EIDE	Mode	ATA 100/66/33
	Channel	1 (support up to 2 IDE devices)
Rear I/O Interface	VGA	1
	RJ-45	2
	USB	4 (USB 2.0 compliant)
	Audio	3 (HD, Mic-in, Line-in, Line-out)
	Parallel	1
	COM	1 (RS-232)
	PS/2	2
Internal Connectors	USB	8
	Serial	3 (1 x RS-232/422/485 and2 x RS-232)
	IDE	1
	SATA	6
	GPIO	16-bit (8-bit DI and 8-bit DO)
Watchdog Timer	Output	System Reset
	Interval	Programmable 1 ~ 255 seconds
Security	TPM	TPM 1.2 by Infineon SLB9635
Operating	Temp	0 ~ 50°C

訂貨信息

		產(chǎn)品描述
	SIMB-A01-6G200A1E	Q35 + ICH9R, LGA775 ATX, VGA/2GbE/4COM
