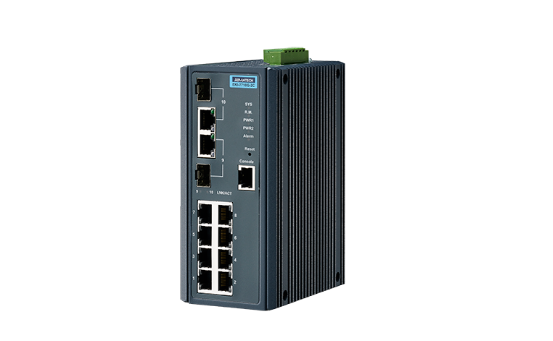

EKI-7710G-2C-AE 8百兆電2千兆光網管型工業以太網交換機

詳情請聯系：13581789724   王海旭      登錄：www.njamb.cn

EKI-7710G-2C/2CI支持8個快速以太網端口和2個千兆端口組合.它可為用戶提供豐富的端口以連接設備，

且其嵌入的研華IXM技術，利于用戶在短時間內完成快速部署并大大節省工程師的時間與成本。

EKI-7710G系列同時支持NMS軟件幫助IT管理者進行網絡維護和故障預防。

EKI-7710G系列支持研華冗余環網協議X-Ring，為您搭建可靠地工業網絡，

幫助用戶輕松建立冗余以太網，具有小于 20ms 的超高速自愈時間。

規格下載規格表

EKI-7710G-2C-AE

Product Category

Layer 2 - Managed Switch

Yes

Interface (B)

Ports Number

10

Ethernet Communication

RJ45 Port Connector Type

RJ45 Transmission Speed

RJ45 Transmission Distance

Fiber Transmission Distance

8 x RJ-45 + 2 x RJ-45/SFP combo ports

10/100/1000Base-T(X)

100 m

Up to 110km

Power

Power Input (DC)

Power Input (AC)

Power Operating Current

Power Consumption

Power Connector Type

Reverse Polarity (X)

12 ~ 48 VDC

12 ~ 48 VDC

0.25A @ 48Vdc (system)

12.1W (system)

6-pin removable screw terminal ((power & relay)

Present

Certification

Ethernet Standard

EMI

Safety

EMC

Shock

Freefall

Vibration

IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w

CE, FCC Class A

UL 508

EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3),

EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3),

 EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

IEC 60068-2-27

IEC 60068-2-32

IEC 60068-2-6

* Port Configuration

Description

Fiber Port Interface (X)

Fiber Port Description (X)

8 x 10/100/1000Base-T(X)

SFP

2 x SFP(mini-GBIC)combo ports

PoE Information

PoE Port Number

-

Switch Properties

MAC Table Size

Packet Buffer Size

Switch Fabric Speed

Jumbo Frame

8K

4.1M bit

20Gbps

9,216 bytes

Mechanism

Dimensions (W x H x D)

IP Rating

Enclosure (Metal)

Weight

Mounting (X)

74 x 152 x 105 mm

IP30

Metal

1.1kg

DIN-rail, Wall

Environment

Temperature (Operating Range)

Temperature (Storage Range)

Relative Humidity

-10 ~ 60°C (14 ~ 140°F)

-40 ~ 85°C (-40 ~ 185°F)

10 ~ 95%

MTBF

Time

Method

858,835 hours

Telcordia(Relax), GB

Warranty

Warranty Period

5 years
