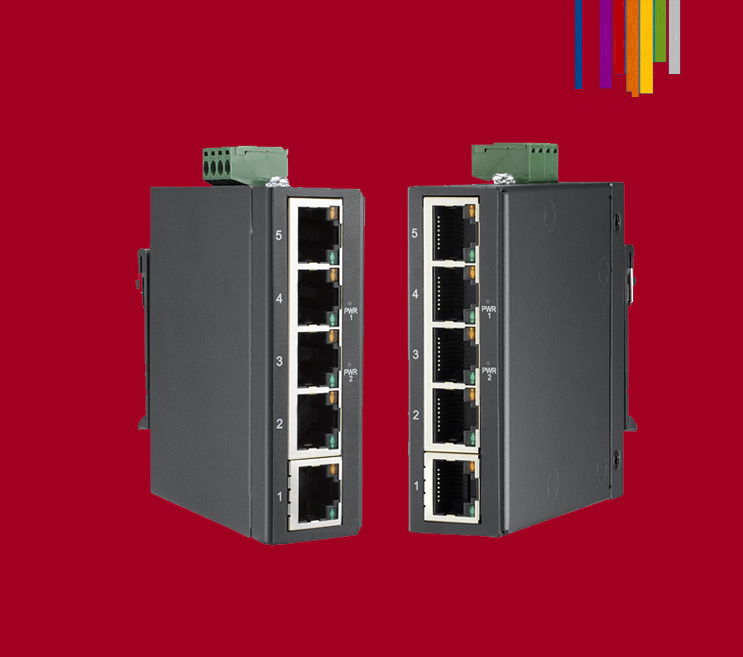

BB-ESW105-A帶有低VAC電源輸入的5端口薄型非網管工業以太網交換機

• 5個帶自動MDI/MDI-x的快速以太網端口
• 支持10/100 Mbps自動協商
• 尺寸緊湊，帶DIN導軌和壁掛式安裝
• IP40級金屬外殼
• C1D2用于危險場所
• BB-ESW105-A
• Certification
• EMI
• CE, FCC Class A
• EMS
• EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• Safety
• EN 60950, UL60950, Class 1 Division 2
• Environment
• Temperature (Min. Operating)
• -40°C (-40°F)
• Temperature (Max. Operating)
• 75°C (167°F)
• Operating Temperature
• -40 ~ 75°C (-40 ~ 167°F)
• Storage Temperature
• -40 ~ 85°C (-40 ~ 185°F)
• Ethernet Communication
• Fiber Port Number
• -
• Fiber Port Interface
• -
• Fiber Port Connector Type
• -
• Fiber Transmission Distance
• -
• Fiber Transmission Speed
• -
• RJ-45 Port Number
• 5
• RJ-45 Port Connector Type
• RJ-45
• RJ-45 Transmission Distance
• 100 m
• RJ-45 Transmission Speed
• 10/100 Mbps
• Mechanism
• Mounting (DIN-rail)
• Yes
• Mounting (Stack)
• -
• Mounting (Panel)
• -
• Mounting (Wall)
• Yes
• Mounting (Rack Mount)
• -
• Mounting (Pole Mount)
• -
• Dimensions (W x H x D)
• 25 x 80 x 84 mm (0.98 x 3.15 x 3.31 in.)
• Enclosure (Plastic)
• -
• IP Rating
• IP30
• Weight
• -
• PoE Information
• PoE Port Number
• -
• PoE Budget
• -
• PoE Output
• -
• Support PoE
• No
• Power
• Power Connector Type
• 4-pin removable terminal (power)
• Power Consumption
• 4.1W
• Power Input (AC)
• 10~24 VAC
• Power Input (DC)
• 12 ~ 48 VDC
• Power Input (PoE)
• -
• Power Input (Battery)
• -
• Switch Properties
• Jumbo Frame
• -
• MAC Table Size
• -
• Packet Buffer Size
• -
• Switch Fabric Speed
• -
• Warranty
• Warranty Period
• 5 years
• Protection
• Overload Current
• Present
• Reverse Polarity

• Present
•
