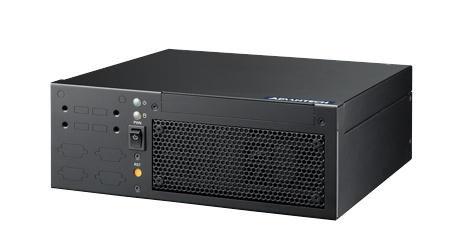

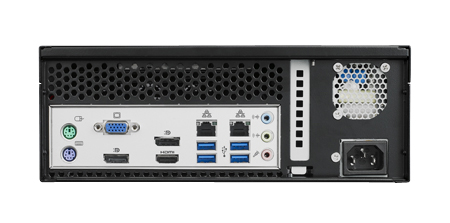

AIMB-B2000

2U MiniITX 機箱, 支持研華所有MiniITX主板，包括從低功耗的Intel? Atom?系列到最新的Intel? Core? i系列處理的所有主板。

AIMB-B2000-00YE	AIMB-B2000-15ZE
Form Factor	Board	Mini ITX MB	Mini ITX MB
Drive Bay	3.5" (int)	0	0
	5.25"	0	0
	3.5" (ext)	0	0
	Slim ODD and 2.5" HDD	2.5" HDD*2 or 2.5" HDD*1 + slim ODD*1	2.5" HDD*2 or 2.5" HDD*1 + slim ODD*1
Miscellaneous	LED Indicators	Power & HDD	Power & HDD
	Reset Button	1	1
	Power Switch	1	1
Expansion	PCI	1 (maximum: 15.9W for low profile PCI card)
	PCI Express x 16		1 (maximum:25W for low profile PCIe card)
Environment	Vibration (5 ~ 500 Hz)	1 Grms (HDD*1+ODD*1); 0.5Grms (HDD*2)	1 Grms (HDD*1+ODD*1); 0.5Grms (HDD*2)
	Shock Protection	10G (with 11ms duration, half sine wave)	10G (with 11ms duration, half sine wave)
Cooling	Fan	1 (7cm/39.45CFM)	2 (7cm/39.45CFM each)
Environment	Temperature (Operating)	0 ~ 40°C (32 ~ 104°F)	0 ~ 40°C (32 ~ 104°F)
	Temperature (Storage)	-20 ~ 60° C (-4 ~ 140° F)	-20 ~ 60° C (-4 ~ 140° F)
	Humidity	10 ~ 85% @ 40° C, non-condensing	10 ~ 85% @ 40° C, non-condensing
Physical	Weight	3.1 kg	3.8 kg
	Dimension (mm)	250 x 98 x 255 mm (10.04" x 3.86" x 9.84")	250 x 98 x 255 mm (10.04" x 3.86" x 9.84")
Reserved Opening	USB	4	4
	Serial	4	4
	WLAN Antenna	2	2
	Expansion slot	1 (low profile)	1 (low profile)

	產品描述
AIMB-B2000-00YE	AIMB-B2000 barebone chassis w/o power adaptor
AIMB-B2000-15ZE	AIMB-B2000 Mini-ITX MB chassis w/ 150W PSU

擁有一個擴展插槽的嵌入式MiniITX機箱          經濟型的嵌入式MiniITX主板機箱          前面板有配有檢測系統錯誤的LED指示燈以及一個擴展插槽          前面板預留有USB，COM以及WLAN天線的孔位          兩個2.5’’的抗震專用硬盤接口          兩個SKU位支持ATX電源和AC-DC電源適配器
