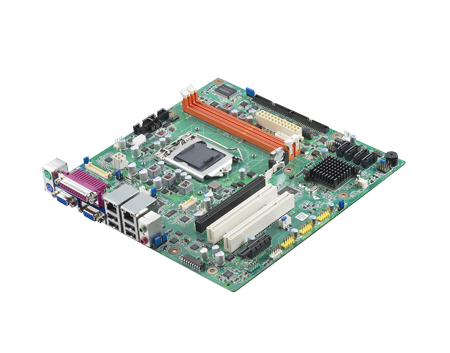

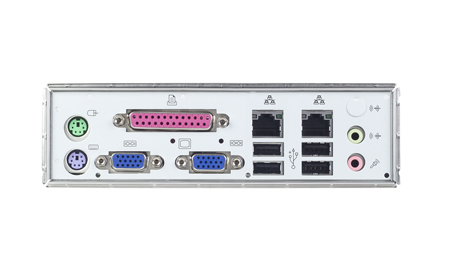

ATM, VTM, BST, SST,自助查詢終端專用MicroATX主板, H61 芯片組, 支持Sandy Bridge Intel?Core? i7/i5/i3處理器的，支持2*VGA/VGA+DVI 及LVDS顯示輸出接口，10個COM輸出接口，10個USB2.0接口，支持DDR3，雙千兆網(wǎng)口

AIMB-501G2-KSA1E	AIMB-501L-KSA1E
Form Factor	Form Factor	Micro ATX	Micro ATX
Processor	CPU	Intel i7-2600 / i5-2400 / i3-2120 / Pentium G850 / Celeron G540	Intel i7-2600 / i5-2400 / i3-2120 / Pentium G850 / Celeron G540
	CPU TDP	95W/ 65W	95W/ 65W
	Frequency	2.5GHz ~ 3.4 GHz	2.5GHz ~ 3.4 GHz
	Core Number	2 / 4	2 / 4
	L3 Cache	2 ~ 8MB	2 ~ 8MB
	BIOS	AMI EFI 64Mbit	AMI EFI 64Mbit
	Chipset	Intel H61 PCH	Intel H61 PCH
Memory	Technology	DDR3 1066/1333 MHz	DDR3 1066/1333 MHz
	Max. Capacity	16 GB	16 GB
	ECC Support	No	No
	Socket	2 x 240-pin DIMM	2 x 240-pin DIMM
Display	Controller	Intel HD Graphics	Intel HD Graphics
	Graphic Engine	DirectX 10.1 and OpenGL 3.0 support	DirectX 10.1 and OpenGL 3.0 support
	Graphic Memory	1GB maximum shared memory with 2GB and above system memory installed	1GB maximum shared memory with 2GB and above system memory installed
	VGA	CRT1: Up to 2048 x 1563 @ 60Hz CRT2: Up to 1920 x 1200 resolution	Up to 2048 x 1563 @ 60Hz
	LCD (TTL/LVDS/eDP)	LVDS: Support 18/24-bit single/dual channel, up to 1600 x 1200
Expansion	PCI Express x 16	1	1
Display	DDI (HDMI/DVI/DisplayPort)	DVI: 1920 x 1200 @ 60Hz (Optional)
Expansion	PCI Express x 1	1	1
Display	Multiple Display	Dual
Ethernet	Controller	GbE1: RTL8111-VL GbE2: RTL8111-VL	GbE1: RTL8111-VL
	Speed	10/ 100/ 1000 Mbps	10/ 100/ 1000 Mbps
	Connector	RJ45 x 2	RJ45 x 1
Audio	Audio Interface	HD Audio	HD Audio
Expansion	PCI	2
Audio	CODEC	Realtek ALC892, High Definition Audio (HD)	Realtek ALC892, High Definition Audio (HD)
	Connector	2 (Line-in, Line out, Mic-in)	2 (Line-in, Line out, Mic-in)
Watchdog Timer	WatchDog Timer	Yes	Yes
Storage	SATA	4 x SATAII (Max. Data Transfer Rate 300 MB/s)	4 x SATAII (Max. Data Transfer Rate 300 MB/s)
I/O	USB2.0	10	10
Audio	Amplifier	Dual channel 6W amplifier
I/O	GPIO	8-bit GPIO	8-bit GPIO
	LPT	1	1
	COM Port	10 ( 8 x RS232, 2 x RS232/ 422/ 485)	2 ( 1 x RS232, 1 x RS232/ 422/ 485)
	Keypad	1	1
	TPM	Optional	Optional
	Smart Fan	3	3
Power	Power Type	ATX	ATX
	Connector	ATX24P	ATX24P
	Power Consumption (Idle)	1.39A @ 5V / 0.96A @ 3.3V / 0.63A @ 12V / 0.16A @ 5Vsb / 0.15A @ -12V	1.39A @ 5V / 0.96A @ 3.3V / 0.63A @ 12V / 0.16A @ 5Vsb / 0.15A @ -12V
	Power Consumption (Full Load)	1.72A @ 5V / 1.02A @ 3.3V / 5.61A @ 12V / 0.27A @ 5Vsb / 0.16A @ -12V	1.72A @ 5V / 1.02A @ 3.3V / 5.61A @ 12V / 0.27A @ 5Vsb / 0.16A @ -12V
	Battery	Lithium 3 V / 200 mAh	Lithium 3 V / 200 mAh
Environment	Operational Temperature	0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)	0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
	Non-Operational Temperature	-20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing	-20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
	Vibration Resistance	3.5 Grm (Non-Operation Mode)	3.5 Grm (Non-Operation Mode)
Physical	Dimension (mm)	244 x 244 mm	244 x 244 mm
	Weight	1.2 kg (2.64 lb), weight of total package	1.2 kg (2.64 lb), weight of total package
Operating System	Microsoft Windows	Yes	Yes
	Linux	Yes	Yes
	SUSIAccess	Yes	Yes
Certification	EMC	CE, FCC	CE, FCC

產(chǎn)品描述	Get Quote
AIMB-501G2-KSA1E	CIRCUIT BOARD, MicroATX with VGA/DVI 10 COM/10 USB/DUAL LAN
AIMB-501L-KSA1E	CIRCUIT BOARD, MicroATX with VGA/DVI 10 COM/10 USB/DUAL LAN
