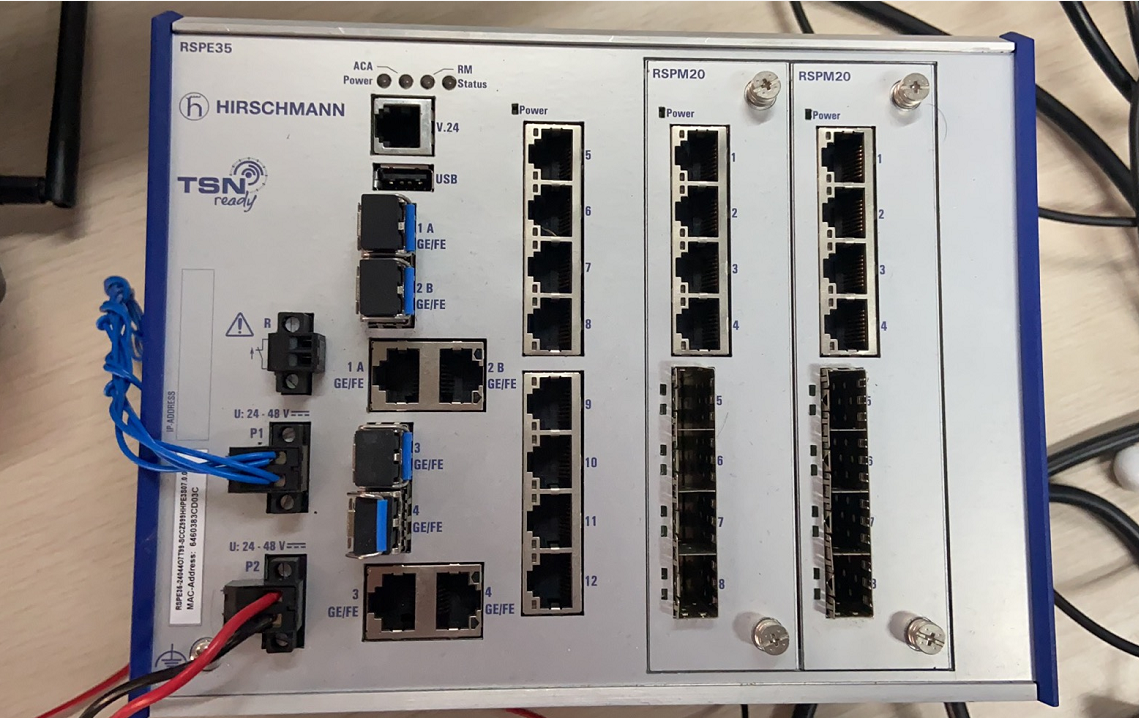

型號
|
RSPE35-24044O7T99-SCCZ999HHPE3S
|
|
產品描述
|
三層交換，35mm卡規安裝
|
|
端口能力
|
最大28個端口
|
|
機械參數
|
|
尺寸 （W x H x D）
|
209 mm x 164 mm x 120 mm
|
|
重量
|
2200 g（含介質模塊）
|
|
散熱方式
|
無風扇散熱
|
|
安裝方式
|
標準35mm卡軌
|
|
防護等級
|
IP30
|
|
工作條件
|
|
工作溫度
|
寬溫（0℃ ~ +60℃）
|
|
存儲溫度
|
（-40℃ ~ +85℃）
|
|
濕度
|
10%～95% （無凝露）
|
|
工作電壓
|
24VDC (18 ~ 60VDC)，冗余電源
|
|
功率
|
36W（滿載）
|
|
網絡規模
|
|
網絡結構
|
線型、星型、環型
|
|
環網恢復時間
|
100臺，<50ms
|
|
功能
|
|
管理方式
|
DNS Client; Dual Software Image Support;
TFTP; SFTP; SCP; LLDP (802.1AB); LLDP-MED; SSHv2; V.24; HTTP; HTTPS; Traps;
SNMP v1/v2/v3; Telnet
|
|
診斷
|
Management Address Conflict Detection;
MAC Notification; Signal Contact; Device Status Indication; TCPDump; LEDs;
Syslog; Persistent Logging on ACA; Email Notification; Port Monitoring with
Auto-Disable; Link Flap Detection; Overload Detection; Duplex Mismatch
Detection; Link Speed and Duplex Monitoring; RMON
(1,2,3,9); Port Mirroring 1:1; Port
Mirroring 8:1; Port Mirroring N:1; RSPAN; SFLOW; VLAN Mirroring; System
Information; Self-Tests on Cold Start; Copper Cable Test; SFP Management;
Configuration Check Dialog; Switch Dump; Snapshot Configuration Feature
|
|
配置方式
|
Automatic Configuration Undo (roll-back);
Configuration Fingerprint; Text-based Configuration File (XML); BOOTP/DHCP
Client with Auto-Configuration; DHCP Server: per Port; DHCP Server: Pools per
VLAN; AutoConfiguration Adapter ACA31 (SD card); HiDiscovery; DHCP Relay with
Option 82; Command Line Interface (CLI); CLI Scripting; Full-featured MIB
Support; Web-based Management; Context-sensitive Help
|
|
冗余功能
|
HIPER-Ring (Ring Switch); HIPER-Ring over
Link Aggregation; Link Aggregation with LACP; Link Backup; Media Redundancy
Protocol (MRP) (IEC62439-2); MRP over Link Aggregation; Sub Ring Manager;
RSTP 802.1D-2004 (IEC62439-1); RSTP Guards; VRRP; VRRP Tracking; HiVRRP (VRRP
enhancements)
|
|
安全功能
|
MAC-based Port Security; Port-based
Access Control with 802.1X; Guest/unauthenticated VLAN; Integrated
Authentication Server (IAS); RADIUS VLAN Assignment; RADIUS Policy
Assignment; Multi-Client Authentication per Port; MAC Authentication Bypass;
DHCP nooping; Dynamic ARP Inspection; Automatic Denial-of-Service Prevention;
LDAP; Ingress MAC-based ACL; Ingress IPv4-based ACL; Time-based ACL;
VLAN-based ACL; Ingress VLAN-based ACL; ACL Flowbased Limiting; Access to
Management restricted by VLAN; Device Security Indication; Audit Trail; CLI
Logging; HTTPS Certificate Management; Restricted Management Access;
Appropriate Use Banner; Configurable Password Policy; Configurable Number of
Login Attempts; SNMP Logging; Multiple Privilege Levels;Local User
Management; Remote Authentication via RADIUS; User Account Locking
|
|
時間同步
|
PTPv2 Transparent Clock two-step; PTPv2
Boundary Clock; Buffered Real Time Clock; SNTP Client; SNTP ServerPTPv2
Transparent Clock two-step; PTPv2 Boundary Clock; Buffered Real Time Clock;
SNTP Client; SNTP Server
|
|
路由功能
|
IP/UDP Helper; Full Wire-Speed Routing;
Port-based Router Interfaces; VLAN-based Router Interfaces; Loopback
Interface; ICMP Filter; Net-directed Broadcasts;OSPFv2; RIP v1/v2; ICMP
Router Discovery (IRDP); Static Unicast Routing; Proxy ARP; Static Route Tracking
|
|
其他功能
|
Independent VLAN Learning; Fast Aging;
Static Unicast/Multicast Address Entries; QoS / Port Prioritization
(802.1D/p); TOS/DSCP Prioritization; Interface Trust Mode; CoS Queue
Management; IP Ingress DiffServ Classification and Policing; Queue-Shaping /
Max. Queue Bandwidth; Flow Control (802.3X); Egress Interface Shaping;
Ingress Storm Protection; Jumbo Frames; VLAN (802.1Q); Protocol-based VLAN;
VLAN Unaware Mode; Voice VLAN; MAC-based VLAN; IP subnet-based VLAN; IGMP
Snooping/Querier per VLAN (v1/v2/v3); Unknown Multicast Filtering; Multiple
VLAN Registration Protocol (MVRP); Multiple MAC Registration Protocol (MMRP);
Multiple Registration Protocol (MRP)
|
|
機械穩定性
|
|
IEC 60068-2-27沖擊測試
|
15 g, 11 ms duration, 18 shocks
|
|
IEC 60068-2-6震動測試
|
1 mm, 2 Hz-13.2 Hz, 90 min.;0.7 g, 13.2
Hz-100 Hz, 90 min.;3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.;1 g, 9 Hz-150
Hz, 10 cycles, 1 octave/min
|
|
EMC接口抗干擾能力
|
|
IEC61000-4-2（ESD）
|
6kV接觸放電，8kV空氣放電
|
|
IEC61000-4-3（RS）
|
10V/m
|
|
IEC61000-4-4（EFT）
|
電源線：2kV；數據線：1kV
|
|
IEC61000-4-5（SURGE）
|
電源線：2kV（CM），1kV（DM）；數據線：1kV
|
|
IEC61000-4-6（射頻傳導）
|
3V（10kHz~150kHz）；10V（（150kHz~80MHz）
|
|
工業認證
|
|
認證
|
cUL 508、cUL 1604 Class1 Div 2
|
